We use HDPE material for manufacturing pipes, Pipe Fittings and solid Ball Valves etc., which has many advantage as mentioned below:

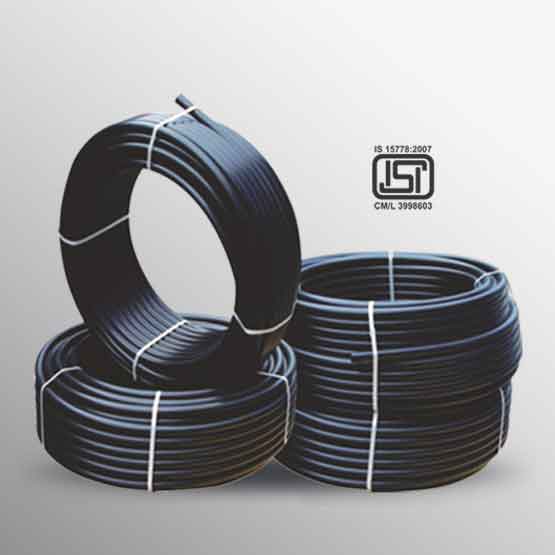

HDPE / PP PIPE
We use HDPE material for manufacturing pipes, Pipe Fittings and solid Ball Valves etc., which has many advantage as mentioned below:
Features
- Safe for Potable Water
- Easy to handle & transport
- Smooth inner walls minimizes frictional losses
- Excellent corrosion and chemical resistance. Inert to most acidic and alkaline solutions
Description
Technical Details
| GENERAL | VALUES | TEST METHOD |
|---|---|---|
| Density (g/cm3@27C) | 940-958 | IS: 7328 / ISO 1183 |
| Melt Flow Index (Gm/10Min.)@190C | 0.2 – 1.10 | ISO 2530 / ISO 1133 |
| Carbon Black Content (%) | 2.5 + - 0.5 | IS: 2530 / ISO 6964 |
| Water Absorption Rate (%) | 0.01 | ASTM D 570 |
| Tensile Strength (Mpa) | 31.28 | ISO 527 / ASTM D 638 |
| Compression Strength (Mpa) | 19.94 | ASTM D 695 |
| Oxidation Induction (Min.) | 65 | ASTM D 2863 |
| Vicat Softening Point (C) | 122-125 | ASTM D 1525 |
| Flexural Strength (Mpa) | 39.88 | ASTM D 790 |
| Flexural Modulus (Mpa) | 825 | ASTM D 790 |
| Deflection Temperature © @ 0.46 Mpa | 80 | ASTM D 648 |
| Deflection Temperature © @ 1.8 Mpa | 83 | ASTM D 648 |
| Dielectric Strength (kV/mm) | 22 | ASTM D 149 |
Key Application  Areas
Residences
Commercial Complex
Industries
Educational Institutes
Drinking
Technical Details
Technical Details
| GENERAL | VALUES | TEST METHOD |
|---|---|---|
| Density (g/cm3@27C) | 940-958 | IS: 7328 / ISO 1183 |
| Melt Flow Index (Gm/10Min.)@190C | 0.2 – 1.10 | ISO 2530 / ISO 1133 |
| Carbon Black Content (%) | 2.5 + - 0.5 | IS: 2530 / ISO 6964 |
| Water Absorption Rate (%) | 0.01 | ASTM D 570 |
| Tensile Strength (Mpa) | 31.28 | ISO 527 / ASTM D 638 |
| Compression Strength (Mpa) | 19.94 | ASTM D 695 |
| Oxidation Induction (Min.) | 65 | ASTM D 2863 |
| Vicat Softening Point (C) | 122-125 | ASTM D 1525 |
| Flexural Strength (Mpa) | 39.88 | ASTM D 790 |
| Flexural Modulus (Mpa) | 825 | ASTM D 790 |
| Deflection Temperature © @ 0.46 Mpa | 80 | ASTM D 648 |
| Deflection Temperature © @ 1.8 Mpa | 83 | ASTM D 648 |
| Dielectric Strength (kV/mm) | 22 | ASTM D 149 |
HDPE Pipe IS: 4984: 1995 (With Amendment) Material Grade PE 63
| Nominal Dia. | PN 2.5 | PN 4 | PN 6 | PN 8 | PN 10 | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | |
| 20 | - | - | - | - | - | - | - | - | 2.3 | 2.8 |
| 160 | 4.9 | 5.6 | 7.7 | 8.7 | 11.2 | 12.6 | 14.6 | 16.3 | 17.8 | 19.8 |
| 140 | 4.3 | 5 | 6.7 | 7.6 | 9.8 | 11 | 12.8 | 14.3 | 15.6 | 17.4 |
| 125 | 3.8 | 4.4 | 6.06 | 6.8 | 8.8 | 9.9 | 11.4 | 12.8 | 13.9 | 15.5 |
| 110 | 3.4 | 4 | 5.3 | 6.1 | 7.7 | 8.7 | 10 | 11.2 | 12.3 | 13.8 |
| 25 | - | - | - | - | - | - | 2.3 | 2.8 | 2.8 | 3.3 |
| 90 | 2.8 | 3.3 | 4.3 | 5 | 6.3 | 7.2 | 8.2 | 9.3 | 10 | 11.2 |
| 75 | 2.3 | 2.8 | 3.6 | 4.2 | 5.3 | 6.1 | 6.9 | 7.8 | 8.4 | 9.5 |
| 40 | - | - | 2 | 2.4 | 2.8 | 3.3 | 3.7 | 4.3 | 4.5 | 5.2 |
| 32 | - | - | - | - | 2.3 | 2.8 | 3 | 3.5 | 3.6 | 4.2 |
| 63 | 2 | 2.4 | 3 | 3.5 | 4.4 | 5.1 | 5.8 | 6.6 | 7 | 7.9 |
| 50 | - | - | 2.4 | 2.9 | 3.5 | 4.1 | 4.6 | 5.3 | 5.6 | 6.4 |
| 180 | 5.5 | 6.3 | 8.6 | 9.7 | 12.6 | 14.1 | 16.4 | 18.3 | 20 | 22.2 |
| 200 | 6.1 | 7 | 9.6 | 10.8 | 14 | 15.6 | 18.2 | 20.3 | 22.3 | 24.8 |
HDPE Pipe IS: 4984 : 1995 (With Amendment) Material Grade PE 80
| OD | PN 2.5 Wall Thickness | PN 4 Wall Thickness | PN 6 Wall Thickness | PN 8 Wall Thickness | PN 10 Wall Thickness | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX |
| 20 | 20.3 | - | - | - | - | - | - | - | - | - | - |
| 32 | 32.3 | - | - | - | - | - | - | 2.4 | 2.9 | 3 | 3.5 |
| 25 | 25.3 | - | - | - | - | - | - | - | - | 2.3 | 2.8 |
| 160 | 161.5 | 4 | 4.6 | 6.2 | 7.1 | 9.1 | 10.3 | 11.9 | 13.3 | 14.6 | 16.3 |
| 140 | 141.3 | 3.5 | 4.1 | 5.4 | 6.2 | 8 | 9 | 10.4 | 11.7 | 12.8 | 14.3 |
| 125 | 126.2 | 3.1 | 3.7 | 4.9 | 5.6 | 7.1 | 8.1 | 9.3 | 10.5 | 11.4 | 12.8 |
| 110 | 111 | 2.7 | 3.2 | 4.3 | 5 | 6.3 | 7.2 | 8.2 | 9.3 | 10 | 11.2 |
| 90 | 90.9 | 2.3 | 2.8 | 3.5 | 4.1 | 5.1 | 5.9 | 6.7 | 7.6 | 8.2 | 9.3 |
| 75 | 75.7 | - | - | 2.9 | 3.4 | 4.3 | 5 | 5.6 | 6.4 | 6.9 | 7.8 |
| 63 | 63.6 | - | - | 2.5 | 3 | 3.6 | 4.2 | 4.7 | 5.4 | 5.8 | 6.6 |
| 50 | 50.5 | - | - | 2.3 | 2.8 | 2.9 | 3.4 | 3.8 | 4.4 | 4.6 | 5.3 |
| 40 | 40.4 | - | - | - | - | 2.3 | 2.8 | 3 | 3.5 | 3.7 | 4.3 |
| 180 | 181.7 | 4.4 | 5.1 | 7 | 7.9 | 10.2 | 11.5 | 13.4 | 15 | 16.4 | 18.3 |
| 200 | 201.8 | 4.9 | 5.6 | 7.7 | 8.7 | 11.4 | 12.8 | 14.9 | 16.6 | 18.2 | 20.3 |
HDPE Pipe IS: 4984 : 1995 (With Amendment) Material Grade PE 100
| OD | PN 6 | PN 8 | PN 10 | ||||
|---|---|---|---|---|---|---|---|
| MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX |
| 20 | 20.3 | - | - | - | - | - | - |
| 25 | 25.3 | - | - | - | - | - | - |
| 32 | 32.3 | - | - | - | - | 2.4 | 2.9 |
| 40 | 40.4 | - | - | 2.4 | 2.9 | 3.0 | 3.5 |
| 50 | 50.5 | 2.3 | 2.8 | 3.0 | 3.5 | 3.7 | 4.3 |
| 63 | 63.6 | 2.9 | 3.4 | 3.8 | 4.4 | 4.7 | 5.4 |
| 75 | 75.7 | 3.5 | 4.1 | 4.5 | 5.2 | 5.6 | 6.4 |
| 90 | 90.9 | 4.1 | 4.8 | 5.4 | 6.2 | 6.7 | 7.6 |
| 110 | 111 | 5.0 | 5.7 | 6.6 | 7.5 | 8.1 | 9.2 |
| 125 | 126.2 | 5.7 | 6.5 | 7.5 | 8.5 | 9.2 | 10.4 |
| 140 | 141.3 | 6.4 | 7.3 | 8.4 | 9.5 | 10.3 | 11.6 |
| 160 | 161.5 | 7.3 | 8.3 | 9.6 | 10.8 | 11.8 | 13.2 |
| 180 | 181.7 | 8.2 | 9.3 | 10.8 | 12.1 | 13.3 | 14.9 |
| 200 | 201.8 | 9.1 | 10.3 | 12.0 | 13.4 | 14.8 | 16.5 |
Feature & Benefit
Features
Safe for Potable water
Easy to handle & transport
High flow characteristics
Smooth inner walls minimizes frictional losses
Excellent corrosion and chemical resistance. Inert to most acidic and alkaline solutions
Light Weight
Application
Industrial effluent disposal systems
Agriculture & Drip Irrigation
Potable Water Supply
Cable Ducting
Gas Transmission
Lift and gravity water supply systems
Benefits of HDPE Pipes
-
No Joints means no leaks
-
HDPE pipe actually gains strength in lower temperatures and will expand at higher temperatures to avoid breaking
-
HDPE pipe is designed to bend to a radius of 25 times its diameter. This means fewer 90 degrees bends overall, less chance for water hammer, a reduction in leaks and easier installation, ideal for new construction.
-
HDPE pipes strength and flexibility allows the pipe to absorb vibrations and stress caused by soil movements. With its ability to be compressed or deformed without permanent damage, pipe has even withstood the destructive forces of earthquakes.
-
HDPE pipe can be buried at a shallow depth
-
There are not joints to pull apart – a distinct advantage. Where ledge rock prohibits excavation and very little cover is available
-
Weather ability
-
HDPE pipe can withstand long exposure to inclement weather conditions, excessive sunlight and ultraviolet rays, making it an excellent pipe for bridge crossings
-
Withstands full vacuum. HDPE pipe will not collapse, even under a full vacuum, when the correct size is used for a required application. This allows for perfect utilization as intake piping at pumps stations
